Etrel Inch Duo
Etrel Inch Duo

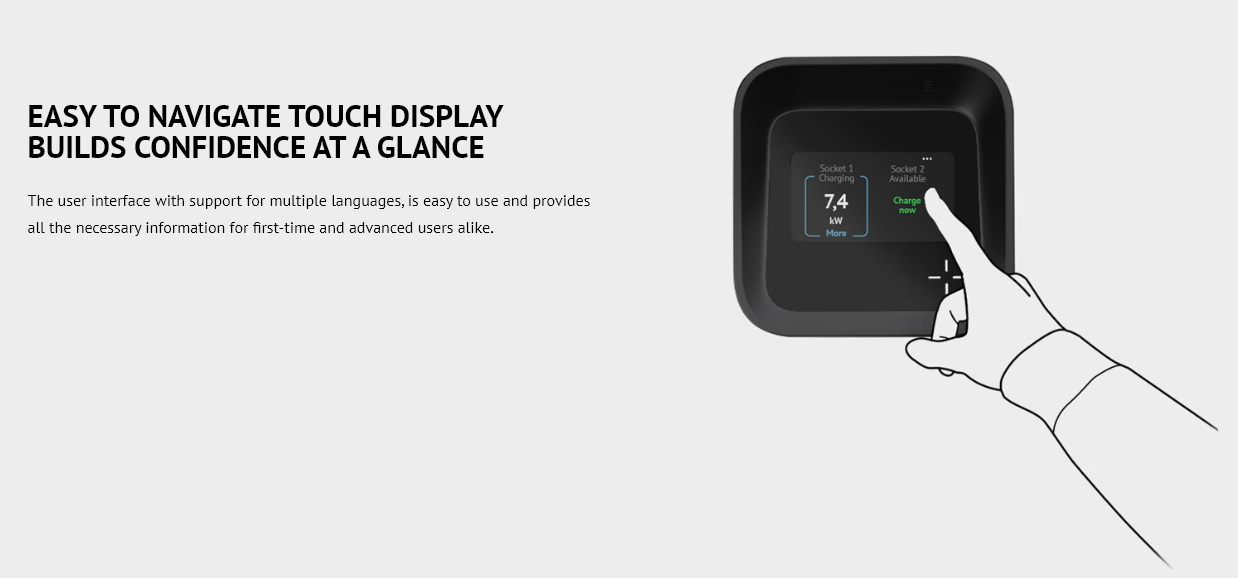

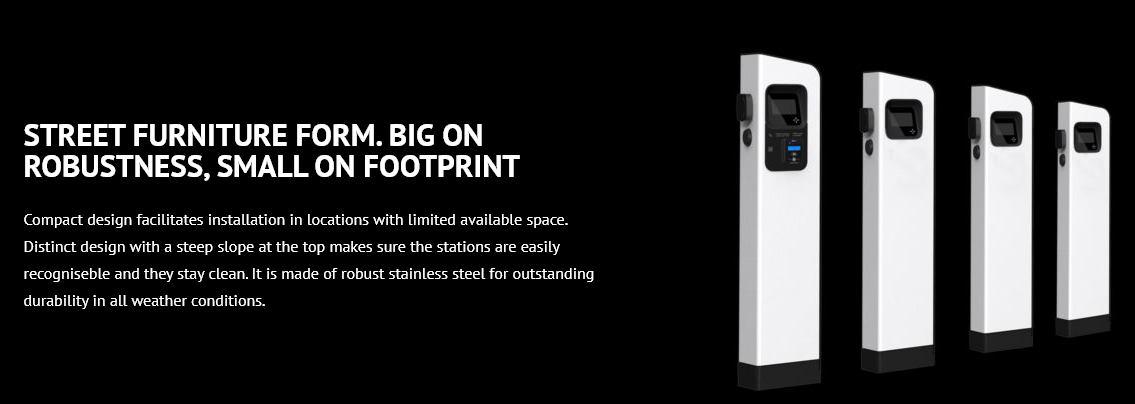

INCH Duo is an unobtrusive, durable charger, ready for continuous operation in demanding public locations. Ergonomic design and a large display with straightforward charging instructions and ad-hoc payment option offer convenience for new users, while optional integration with external sensor devices like parking sensors help enhance infrastructure accessibility and optimise usage patterns.
Multi level load balancing capabilities with cluster connectivity, ensure fair distribution of charging power among plugged-in vehicles while respecting the grid connection point limitations.

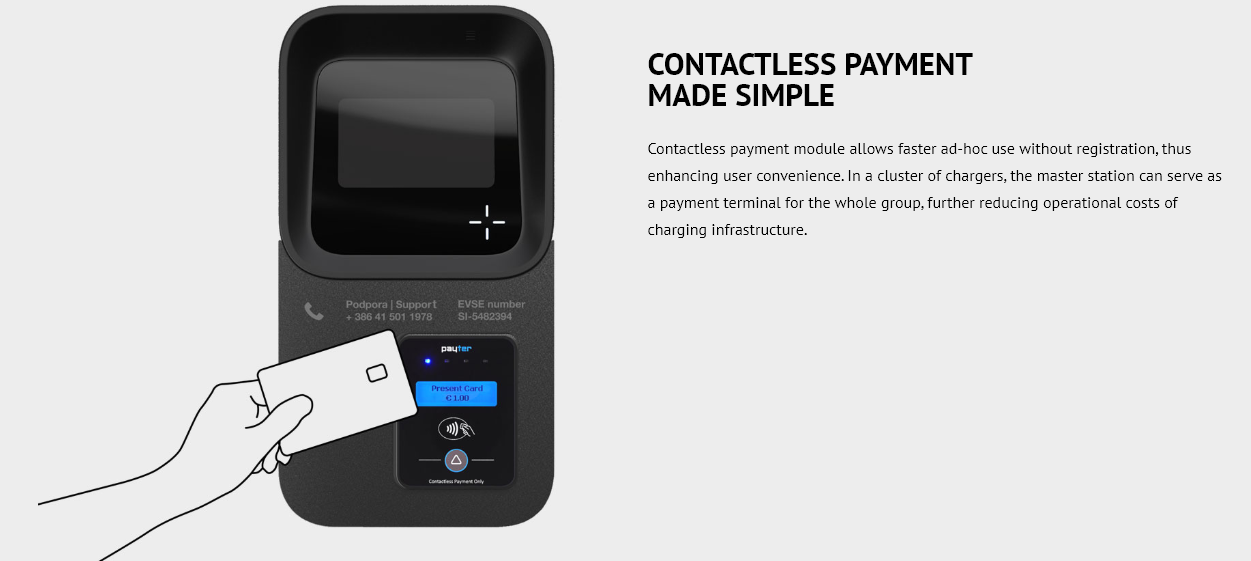

• Contactless credit card payment and straightforward user interface deliver simplified charging experience.
• Dynamic power management in clusters contributes to the scalability of charging infrastructure, lowering the initial investment.

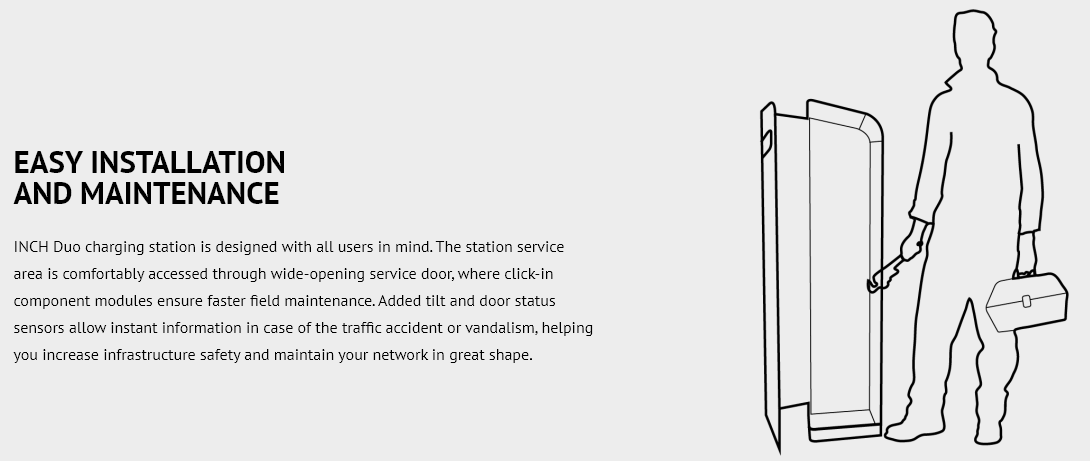

• Easy installation with a wide-angle door opening and modular components shorten the field time and simplify maintenance.

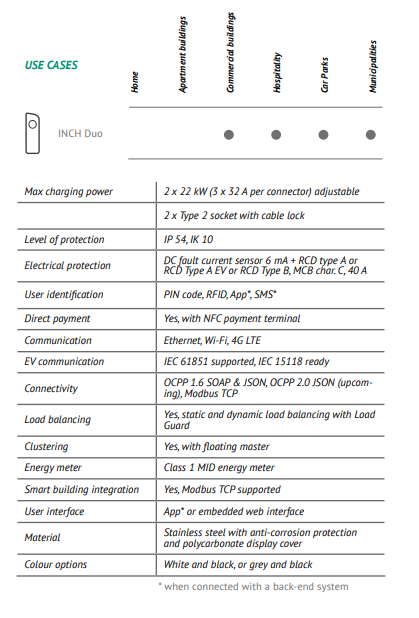

Max charging power: 2 x 22 kW (3 x 32 A per connector) adjustable Type 2 socket with cable lock
Level of protection: IP 54, IK 10
Electrical protection: DC fault current sensor 6 mA + RCD type A or
RCD Type A EV or RCD Type B, MCB char. C, 40 A
User identification: PIN code, RFI
Material: Stainless steel with anti-corrosion protection and polycarbonate display cover
Colour options: Grey and black (in stock), White and black (available with lead time)

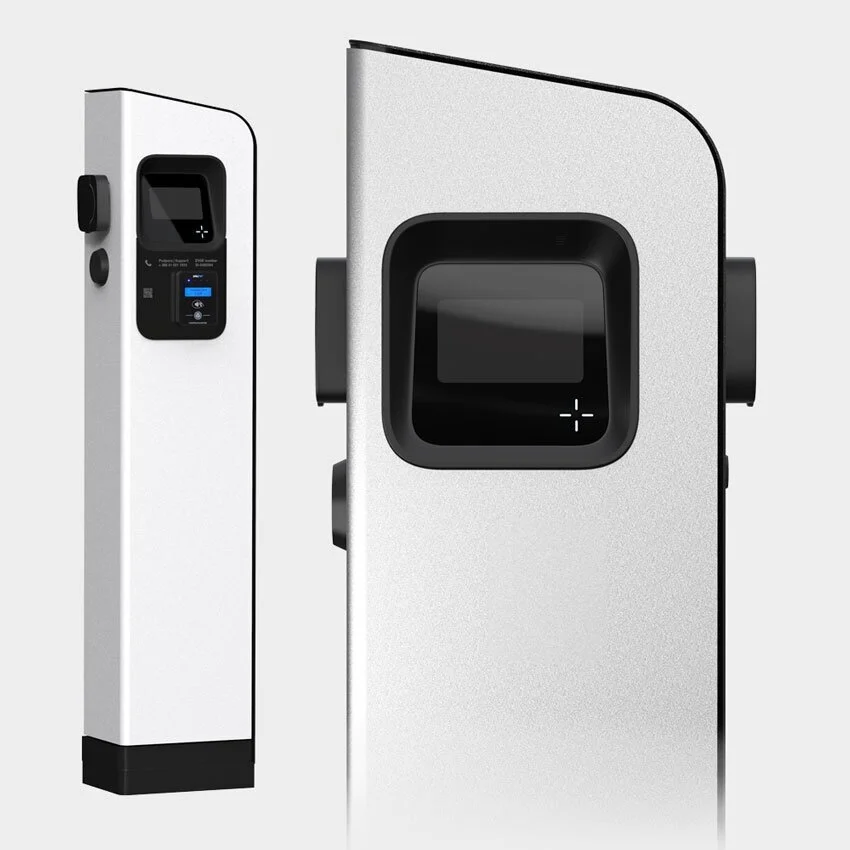

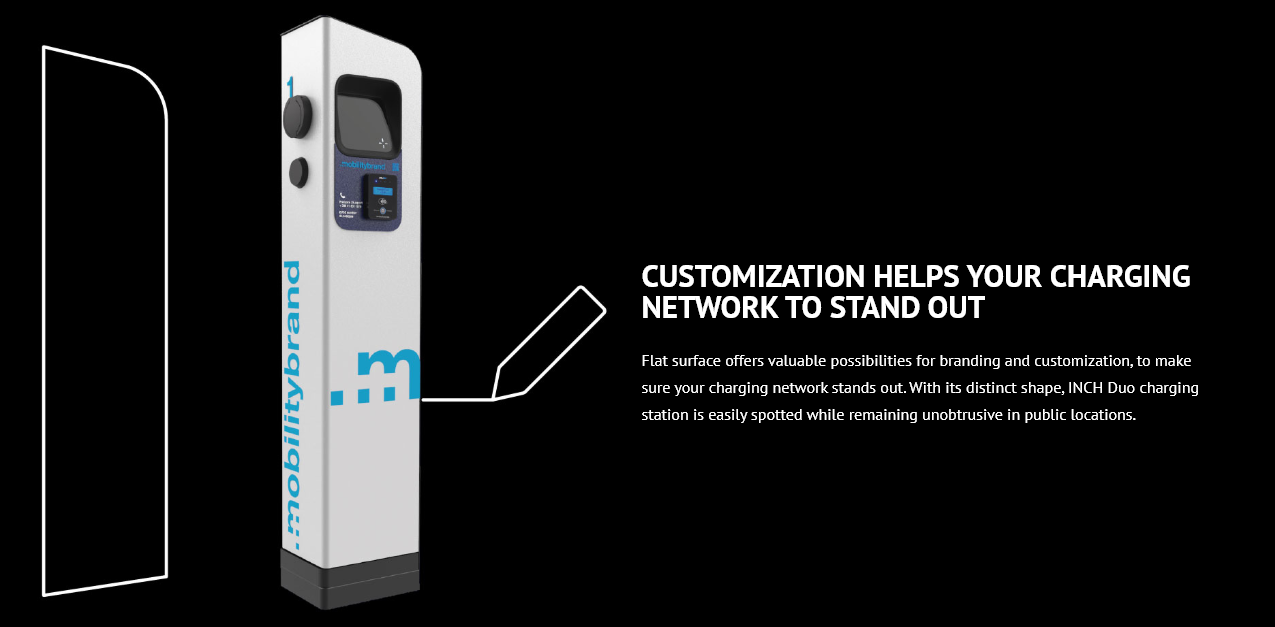

BELOVED DISTINCT DESIGN,
WHOLE NEW TECHNOLOGY.
INCH Duo is an unobtrusive, durable charger, ready for continuous operation in demanding public locations. Ergonomic design and a large display with straightforward charging instructions and ad-hoc payment option offer convenience for new users, while optional integration with external sensor devices like parking sensors help enhance infrastructure accessibility and optimise usage patterns.

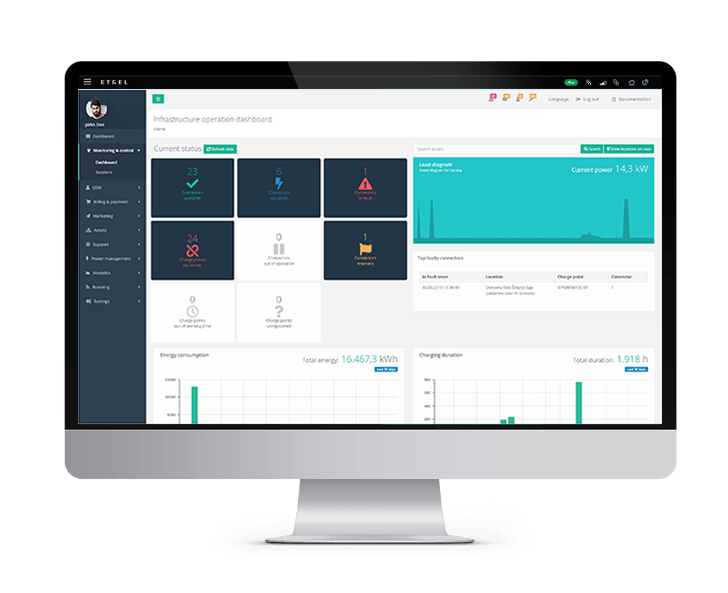

UNLOCK FULL POTENTIAL WITH OCEAN BACK END SYSTEM
Connecting charging stations in charging management system open up new possibilities for management and monetisation of charging infrastructure, remote maintenance and support for users. Offer users a seamless transition between charging locations with a single app, while keep track of all your charging equipment out in the field.

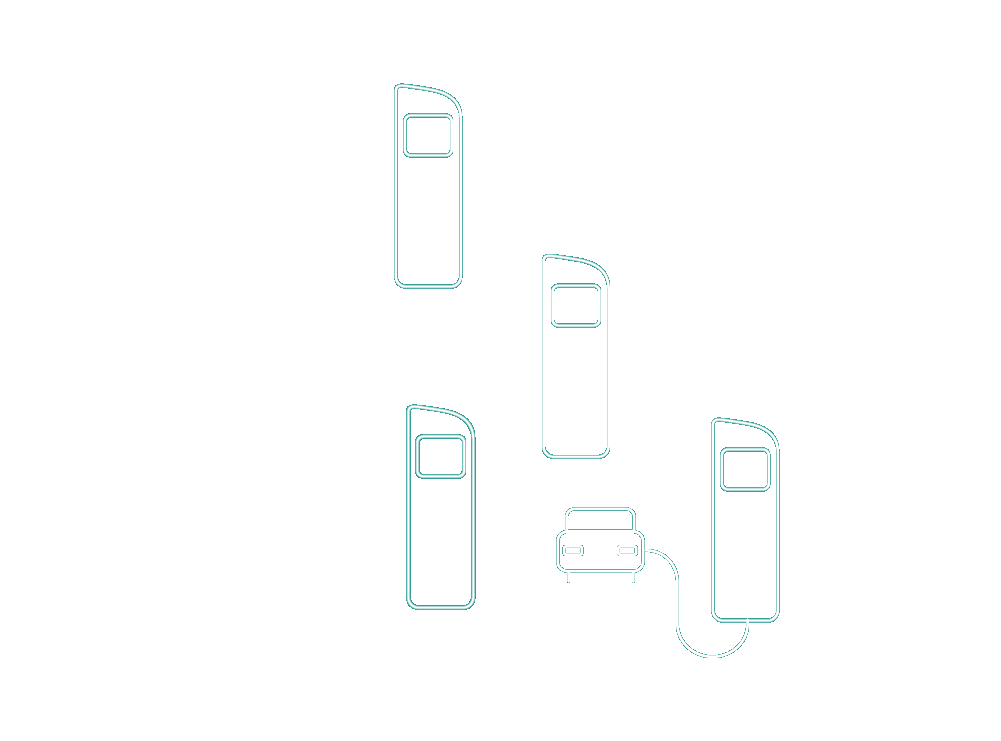

OPERATING MULTIPLE CHARGING STATIONS?
With interactive charging, the power among them will be distributed evenly. Clustering capabilities out-of-the-box ensure the scalability of charging infrastructure on location. Cluster power management algorithms support mixed autonomous groups of Etrel charging units. Power management capabilities can be further extended with Load Guard to balance the available charging power between chargers, based on connected vehicles, priorities and required amounts of energy without overloading the installation.
